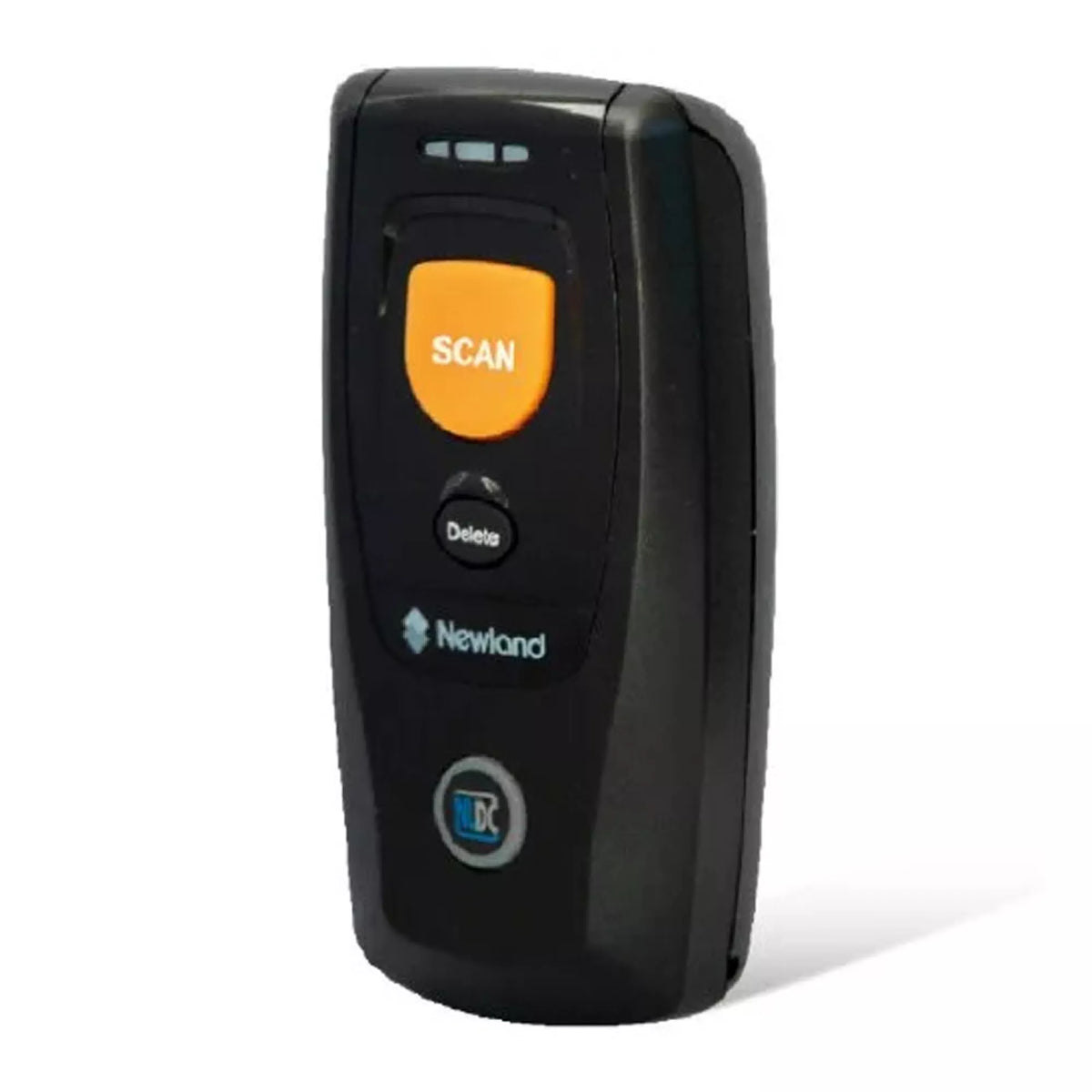

Newland BS8060 Piranha Handheld Scanner

Providing the convenience of always having a scanner at your fingertips.

Bluetooth wireless can be used to pair the Piranha with a mobile computer, consumer phone, tablet or micro kiosk. This adaptability and portability makes it the perfect solution for industries like retail, warehousing and online to offline (O2O) applications like electronic ticketing and electronic ordering.

Features

Superior reading performance.

The BS80 Piranha is offered in 2 versions, containing a 1D or a 1D+2D barcode scanning engine. Both of these engines read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.

Easy Bluetooth pairing.

Via Bluetooth 4.0 Class 1 wireless technology, the BS80 Piranha can be paired with any Android, iOS or Windows device five times faster than regular Bluetooth.

Can be used anywhere, anytime.

The BS80 Piranha is small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.

Convenient communication.

Use the interface that suits your application best. The BS80 Piranha gives you the flexibility to choose your preferred communication method with options like HID keyboard and Virtual COM.

Hassle-free battery capacity.

The high capacity Li-ion battery in the scanner provides up to 11 hours of continuous use per charge, allowing you to work hassle-free all day.

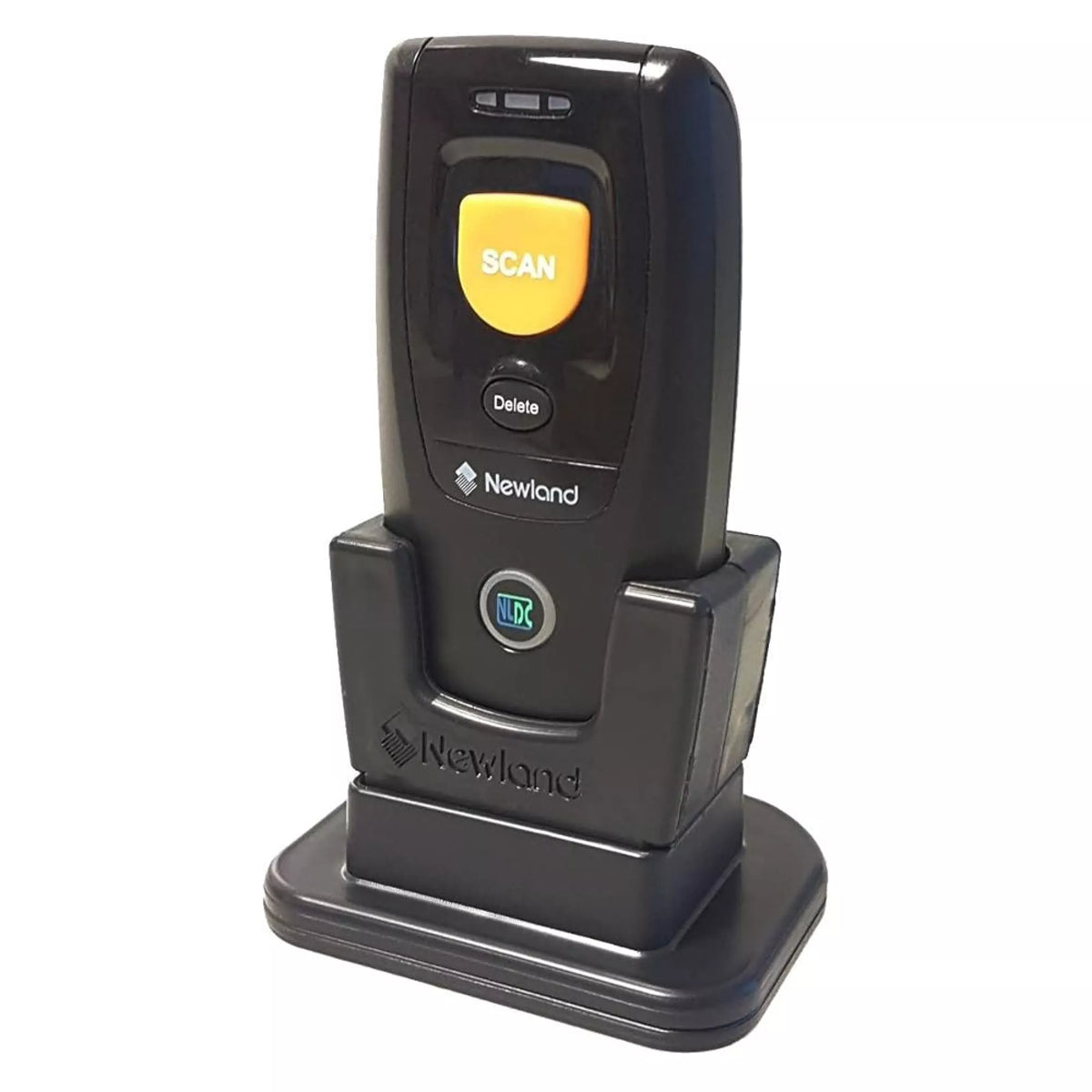

Charging and communication cradle available (optional).

Application scenarios.

Mobile payments, e-coupons/e-vouchers, retail store management, inventory management, distributor management and more.

SPECIFICATION

Brand	Others
Model Number	BS8060
weight	0.40 kg
Image Sensor	CMOS 752*480
Illumination	612nm-624nm red LED
Depth of Field EAN 13 (13mil)	60-380mm
Depth of Field Code 39 (5mil)	60-190mm
Depth of Field PDF417 (6.67mil)	85-150mm
Depth of Field DataMatrix (10mil)	85-140mm
Depth of Field QR (15mil)	40-190mm
Performance	Memory Flash- 1MB Minimal Print Contrast- 30% Scan Angle Roll- 360° Scan Angle Pitch- ±55° Scan Angle Skew- ±55°
Material	PMMA ABS
Buttons	SCAN Delete Function
Interfaces	Micro USB Bluetooth HID/SPP/BLE profiles
Battery Type	3.7V 900mA rechargeable Li-ion battery
Expected Battery Life	6 hours of continuous operation
Expected Charge Time	3.5 hours
Notifications	Beep LED and vibration
Input Voltage	5VDC±5%
Current @ 5VDC Operating	260mA (Bluetooth is on)
Current @ 5VDC Standby	10mA
Environmental	Operating Temperature- -20℃ to 50℃ (-4°F to 122°F） Storage Temperature- -40℃ to 70℃ (-40°F to 158°F) Humidity- 5%~95% (non-condensing) Electro Static Discharge (ESD)- ±8 KV (direct discharge); ±15 KV (air discharge) Drop- 1.2m IP Rating -IP42
Wireless	Radio Technology -2.4 - 2.5GHz ISM band compatible with Bluetooth 4.0/3.0/2.1+EDR Wireless Distance (max.)- 50m (open space)
Package Dimension (W, H, L ) in cm	4.6 x 2.45 x 8.8
SKU	PR024231
